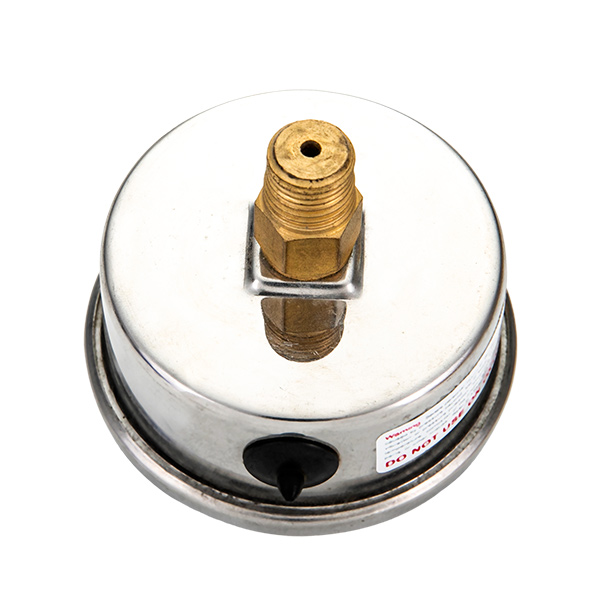

50mm axial brass connection glycerin filled pressure gauge two pieces type OKT-6

50mm axial brass connection glycerin filled pressure gauge two pieces type OKT-6

Referance size: 2.0"50mm)
Option  size: 1.5"(40mm), 2.0"(50mm),
2.5"(63mm), 4.0"(100mm),
4.0"(100mm),6.0"(150mm)
Dircetion: axial
Pressure gauge: 0~20bar/psi
Option  pressure: -1~0 bar to 0~1000bar
Accuracy: ±1.6%,±2.5%
Case and bezel: polished stainless steel
Connection: brass in two pieces
Window: PC or tempered glass
Thread: 1/4"BSP.1/4"NPT etc.
Fill: glycerine or Silicone
Gaskets/Filling cap: Neoprene Or Silica gel
Other Option: with red mark adjustable pointer,flange,U-clamp or rubber
0
Views: 1,410
E-mail: [email protected]

Product Details





Cixi Oukate Instrument Technology Co., Ltd. is a manufacturer of 50mm axial brass connection glycerin filled pressure gauge two pieces type OKT-6, and are specialized in producing and developing. The former name of our company is JIU ZHOU. After more than 20 years of effort, our company has already had advanced craft equipment and complete test facilities, ensuring high-quality 50mm axial brass connection glycerin filled pressure gauge two pieces type OKT-6.

We can produce if the quantity you want is large. Wholesale 50mm axial brass connection glycerin filled pressure gauge two pieces type OKT-6 with cheap price, welcome to choose from.



our services

Pre-sales advice

Production tracking

After-sales Service

packaging & shipping

Packing Details :Wooden box for customized mould.

Delivery Details :35-45days for customized mould, and finished producsts' delivery time

is depended on quantity of production.
